Van de Stadt 34 | № 391


Length over all10.25 m Length waterline8.00 m Beam3.30 m Draft1.80 m Draft1.30 m Draft keel/centreboard (steel/alum.)0.97 / 1.70 m Draft keel/centreboard (wood)1.07 / 1.77 m Displacement (steel)5.40 t Displacement (aluminium)4.50 t Displacement (wood)4.50 t Ballast (steel)1.80 t Ballast (aluminium)2.00 t Ballast (wood)2.00 t Sail area fractional rig66.0 m² Sail area masthead rig61.7 m²

The 34 footer is our first design in which the computer played the title role. Should the multi-chine design be chosen, the hull can be built of steel or aluminium in a couple of weeks. The plates can be drawn and cut out very accurately. There is even a complete ready-cut plate package available. The sound, strong construction makes it suitable for open sea.

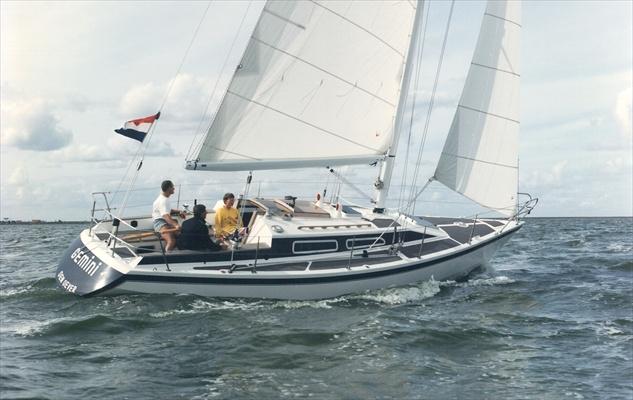

The VAN DE STADT 34 is a modern design with plenty of space below deck. A comfortable double bed is projected in the stern. The toilet has enough room for a shower. The galley offers good moving space, the saloon looks like that of a 40 footer. And, at the chart table you can really work. This sea-going yacht makes crossings shorter. Because there is nothing to hamper speed. For the choice of building method, rigging and keel, see the remarks in our catalogue of stock plans.

The VAN DE STADT 34 is the new standard for fast yachts that look larger than they are, but don't require too much time to build.

The steel and aluminium versions include all expanded plate patterns in ACAD dwg format.

DIGITAL BOAT PLANS Click on prices to order
BUILDING PLANS: Multi-chine Steel & Aluminium - Quick Assembly
EUR 950
BUILDING PLANS: Round-bilge Wood-epoxy & Glass-fibre Wood Core
EUR 1150
